Application

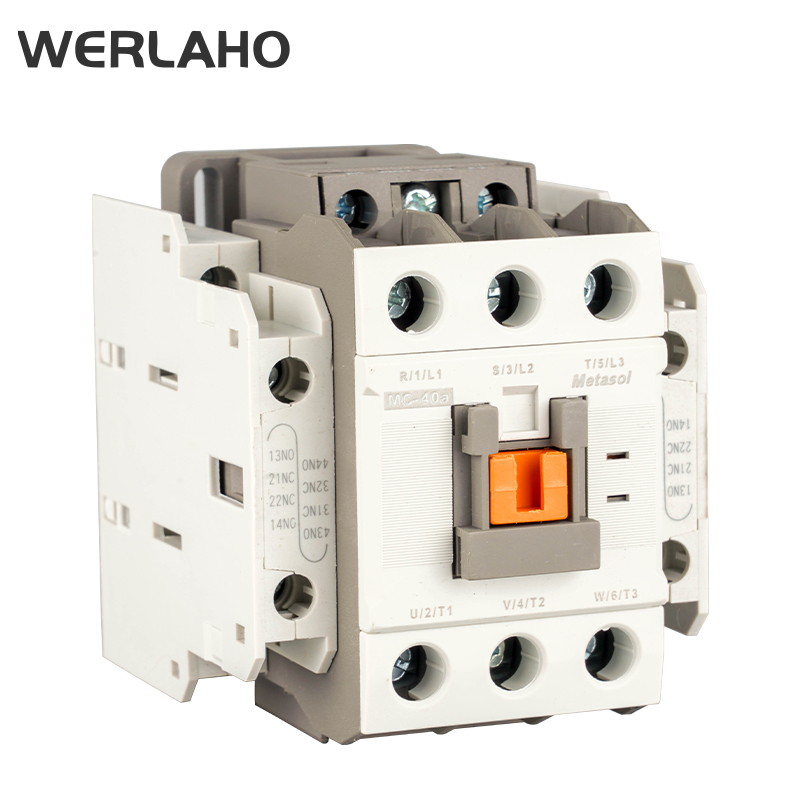

WGMC series AC contactor, is mainly applied to making and breaking the circuit in Power system of AC 50Hz or 60Hz, rated operate voltage up to 660V, rated current 9-150A circuit, for remotelyconnecting and breaking the circuit. It can be combined with appropriate thermal relay into electromagnetic starter to protect the circuit that may have overload operations. It conforms to: IEC/EN60947-4-1 standard.
Model No.
Normal operating condition and installation condition
Altitude:no more than 2000 meters.
Ambient air temperature:-5℃-40℃.
Installation category:Class.Il Installation condition:The inclination angle between the installation surface and the vertical surface is no more than±5°.

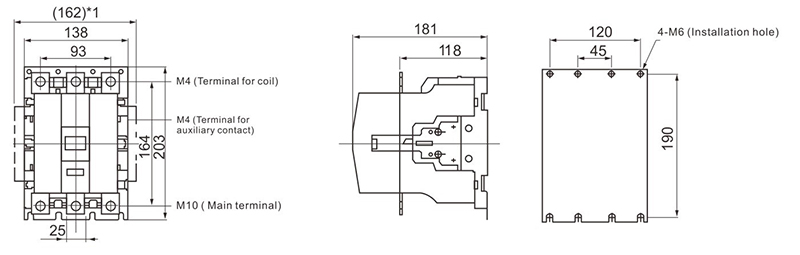

Installation dimension drawing

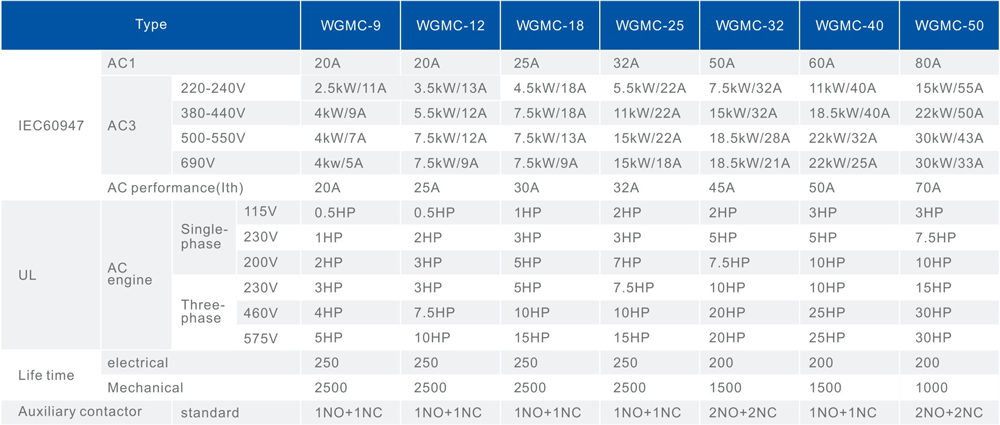

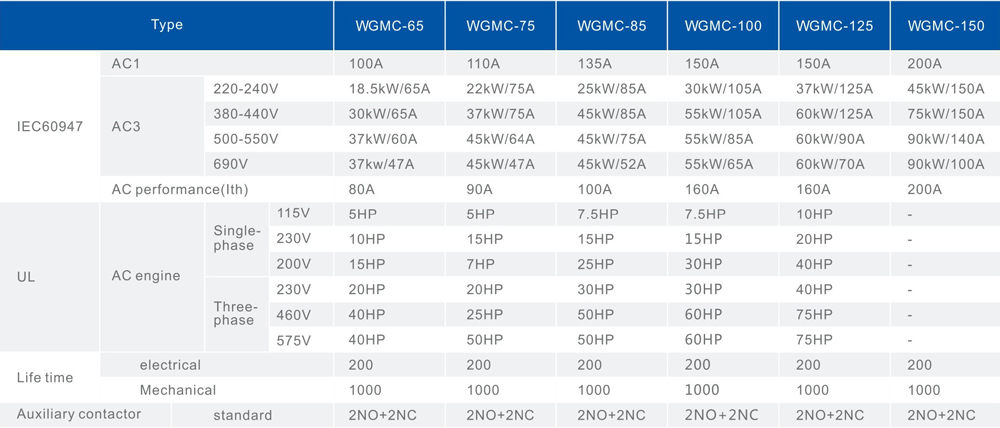

Main technical parameter
