Application
LR2-F Thermal Overload Relay is applicable to protect AC motors (working long-time continuously or discontinuously) against overload and open-phase in circuits with AC 50/60Hz, current up to 630A, and voltage up to 690V. It features temperature compensation, action indication, and manual and automatic restoration.

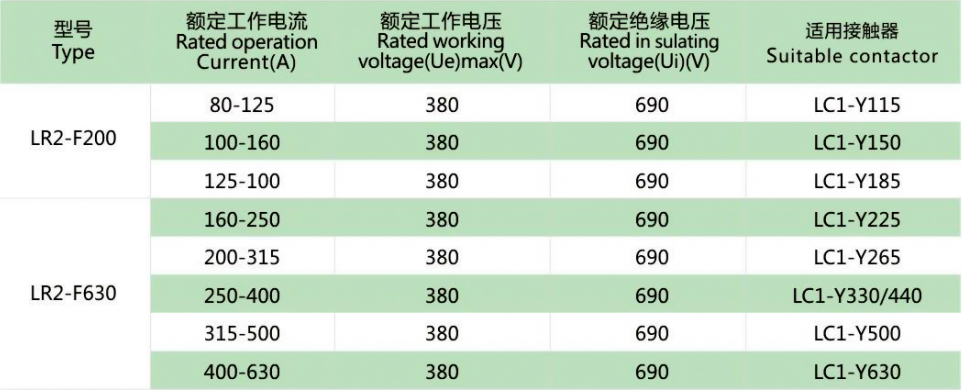

Specifications

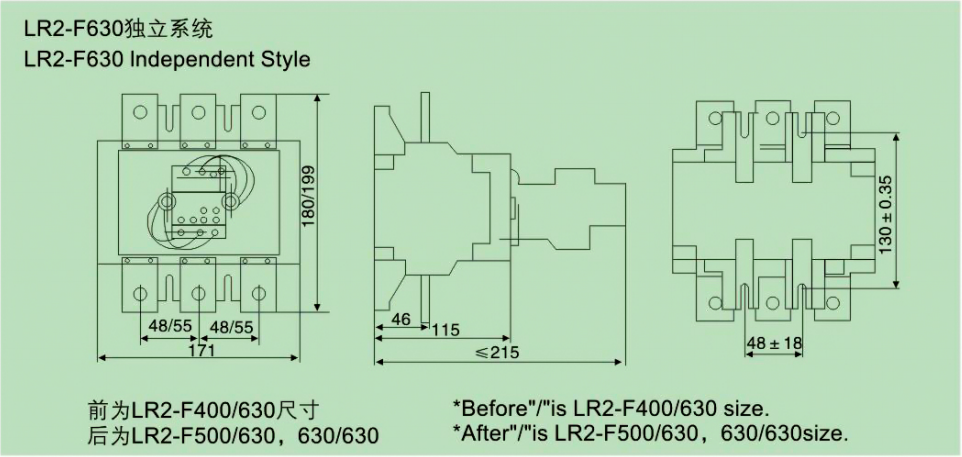

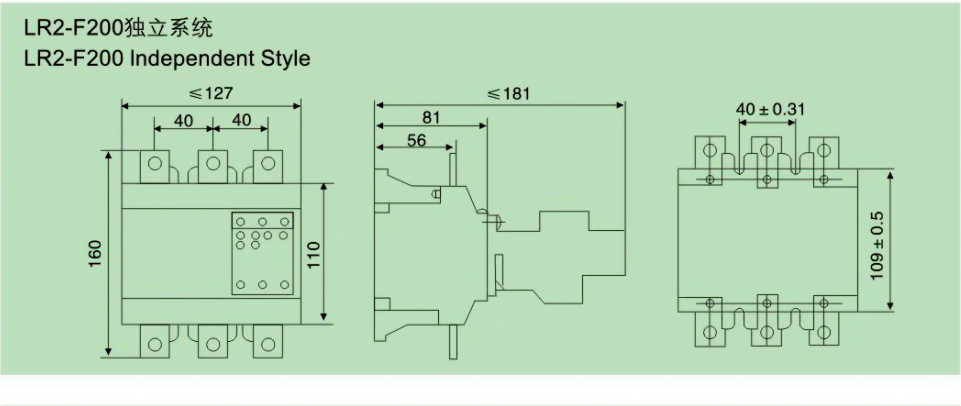

Dimension & Mounting Size
