Application

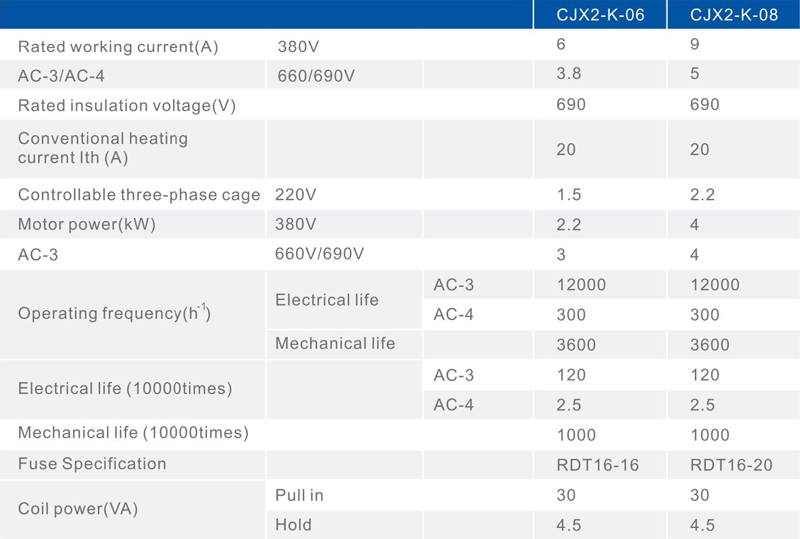

CJX2-K series AC contactor is mainly used for AC 50Hz or 60Hz, rated working voltage to 690V, rated current circuit to 9A, for the use of remotely connecting and breaking the circuit. It also can be combined with suitable thermal relay into electromagnetic starter to protect the circuit that may have overloaded operations. It conforms to the standard IEC/EN60947-4-1.
Structure characteristics
1. The utility model has the advantages of advanced structure, small size, light weight, low power consumption, long operation life, safety and reliability, high technical performance etc..
2. It can be assembled by block type, equipped with auxiliary contact group, thermal relay and other accessories, combined into a variety of derivative products.
3. The contactor not only can be installed by screw, but also can be installed with 35mm standard rail.
4. The contact direction of the iron core and the contact of the contactor is parallel to the mounting surface,
Auxiliary contact blocks

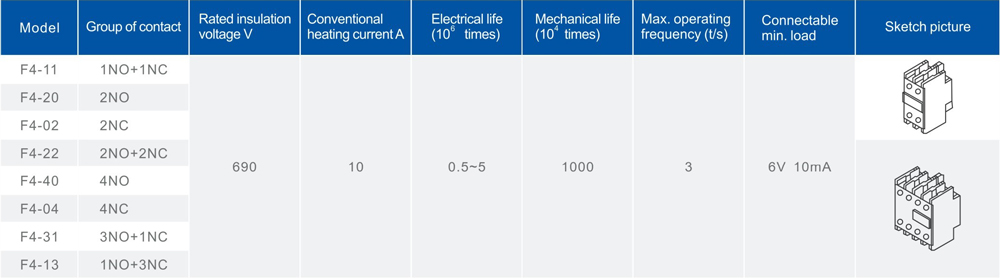

Main technical parameter of F4(LA1-D)type auxiliary contacts to see table 1
Main technical parameter of LA2-D/LA3-D type air delay contacts to see table 3

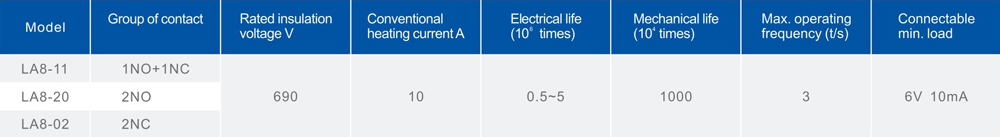

Main technical parameter of LA8 type auxiliary contacts to see table 2

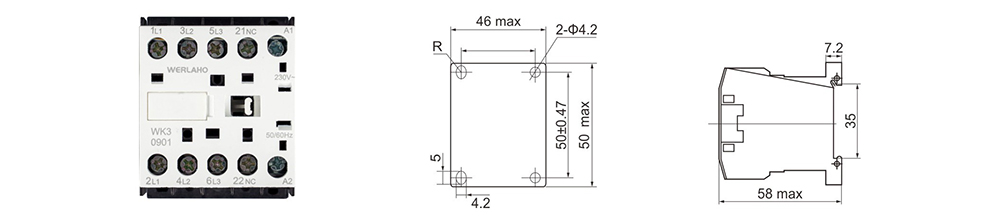

Dimensions
