Application
This series of thermal overload relay can be used in the circuit of 50HZ or 60HZ,rated insulation voltage 660v,rated current 0.1-140A for protecting the phase break when the electric motor is overload.
The realy has different mechanism and temperature compensation & can be pluged in CJX2-D series AC contactor,It is the most advanced thermal relay in the nineties in the world.The products comply with IEC 60947-4.

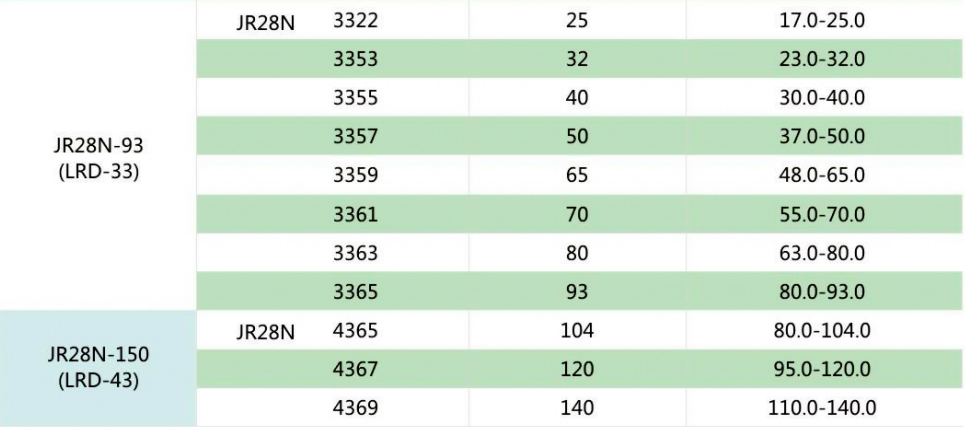

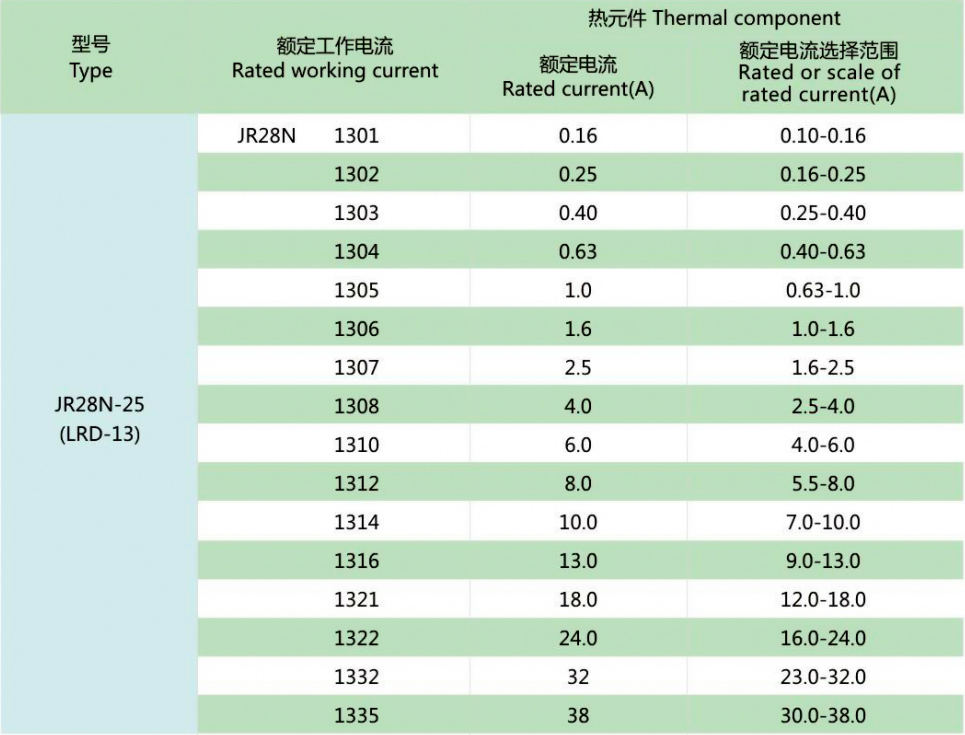

Specifications
