Application
3UA thermal relay is suitable for AC 50Hz or 60Hz voltage up to 660-1000V and current up to 630A .General AC motor of long or discontinuous long operation ,temperature compensation, and trip indication. It can automatically and passively get back.It can be fixed with contactor together. Also be independently fixed.

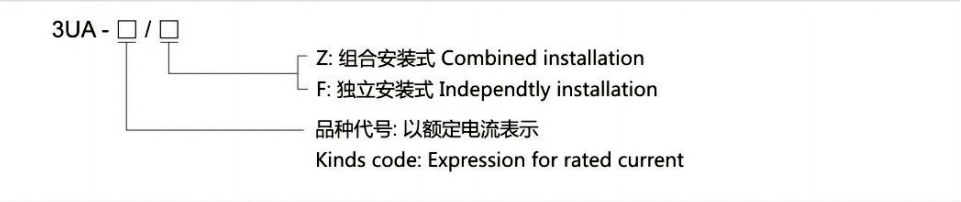

Model and name

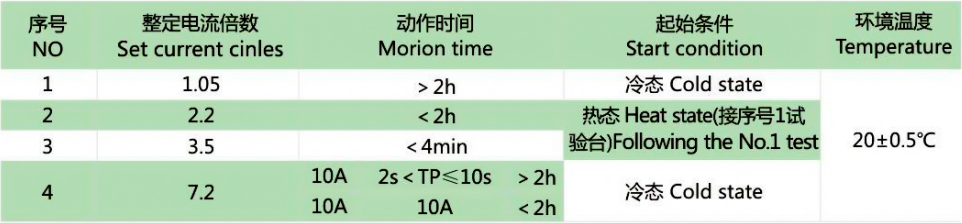

Motion characteristic.Three-phase balance motion time

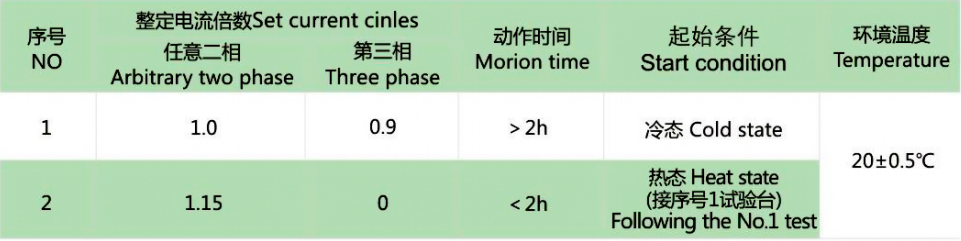

Phase-losing morion characteristic

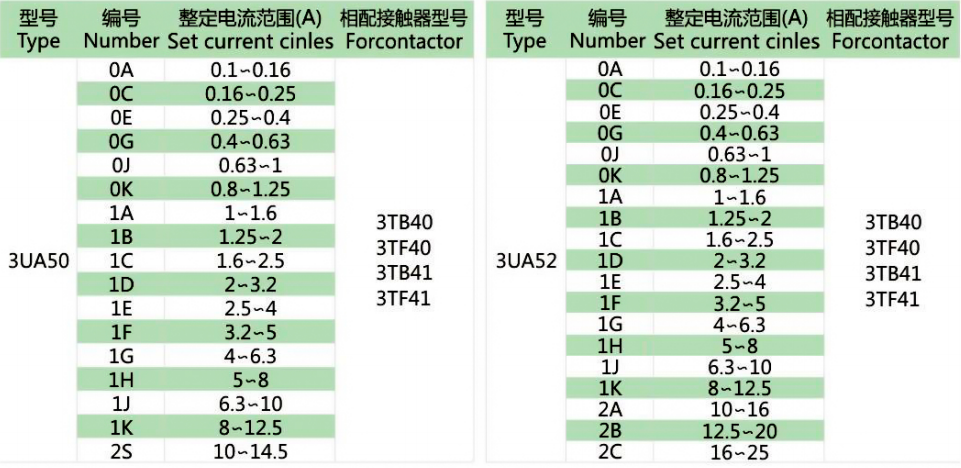

Specifications
