Application
1. Standard: IEC/EN 60947-4-1, IEC 60947-2
2. Protection class: IP20
3. Electric rating: AC 50/60Hz, AC 690V
Normal operating condition and installation condition
1. Ambient air temperature:-5...+40℃
2. Relative humidity:≤90%
3. Pollution degree: Ill
4. Product should be installed and operated at a place without obvious shake, impact or vibration.
Main technical parameter
1. Rated insulation voltage Ui:690V
2. Rated operating voltage Ue:230/240V,400/415V,440V,500V,690V
3. Rated impulse withstand voltage Uimp:8000V
4. Rated current:up to 32A for PGV2;up to 80A for PGV3
5. Protection reference to see below:

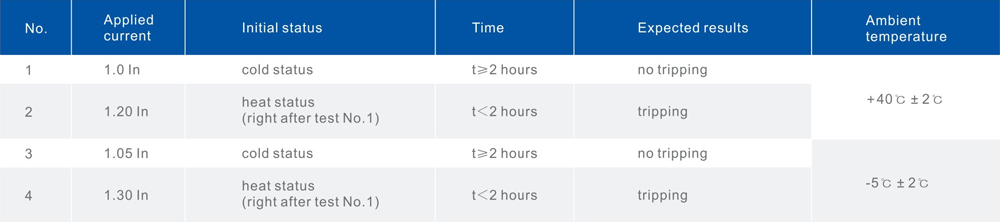

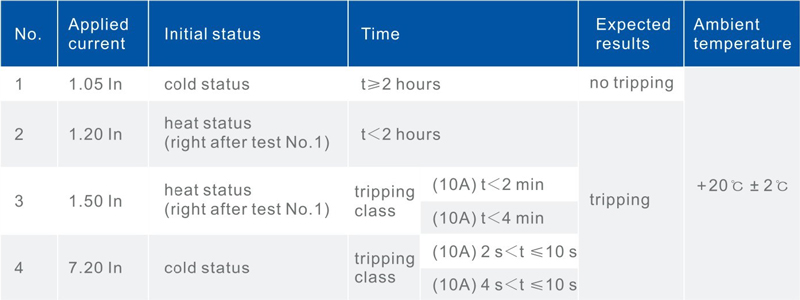

Overload protection reference
Phase failure protection reference

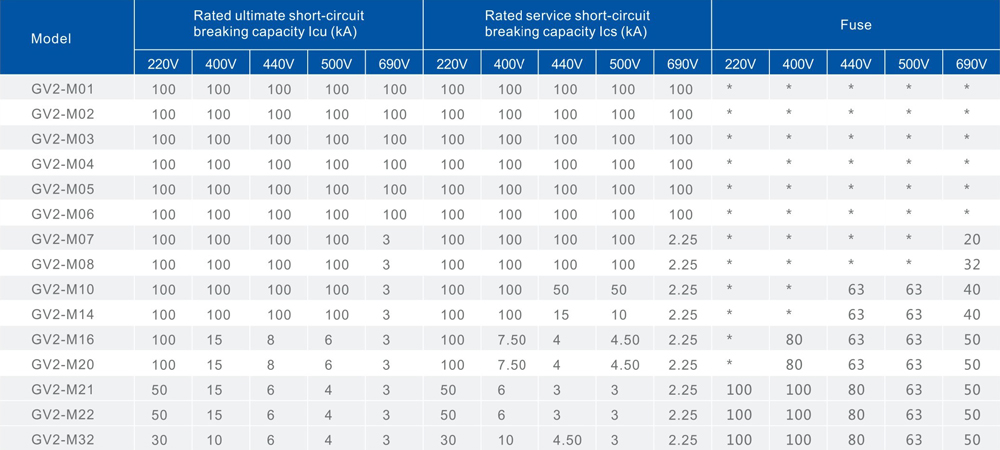

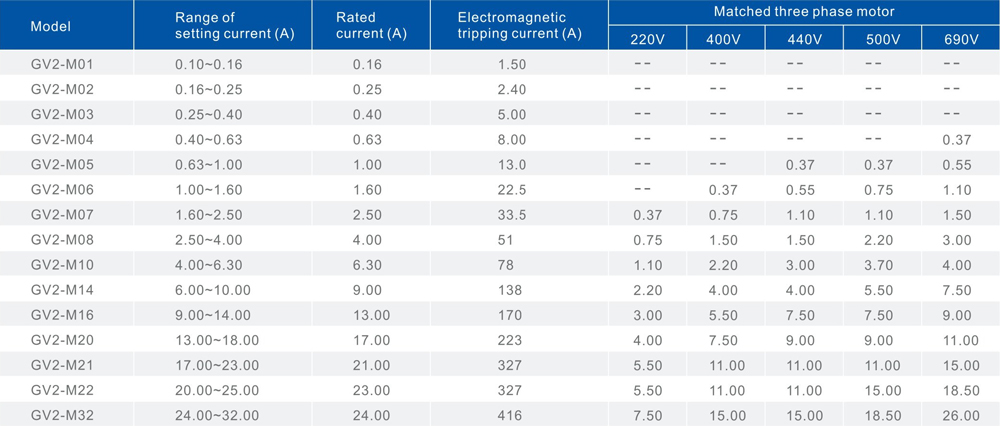

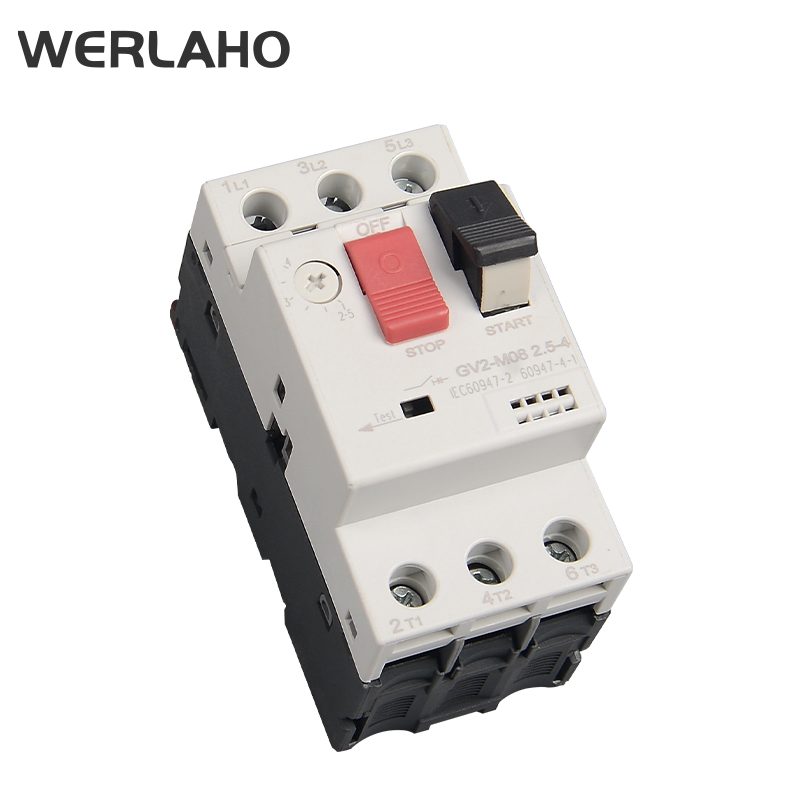

The technical data of GV2 please see below Table 4 and Table 5
Remarks:*means fuse is not required.

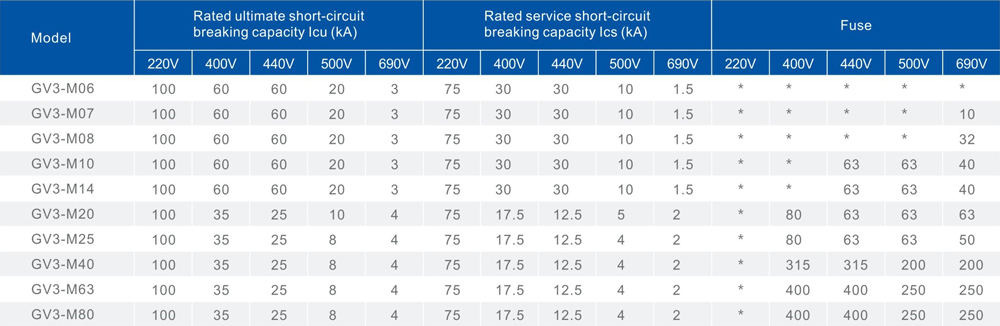

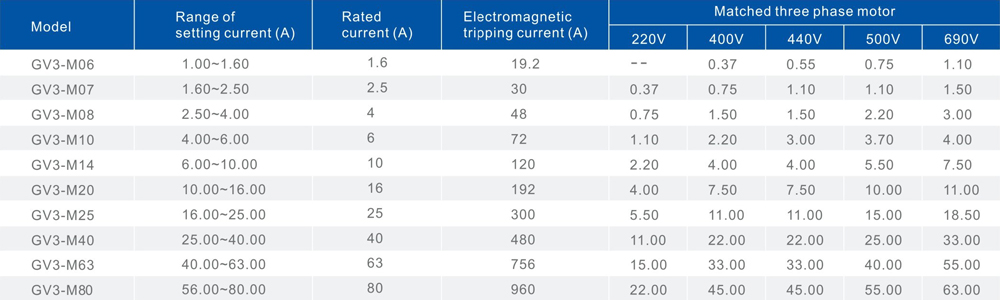

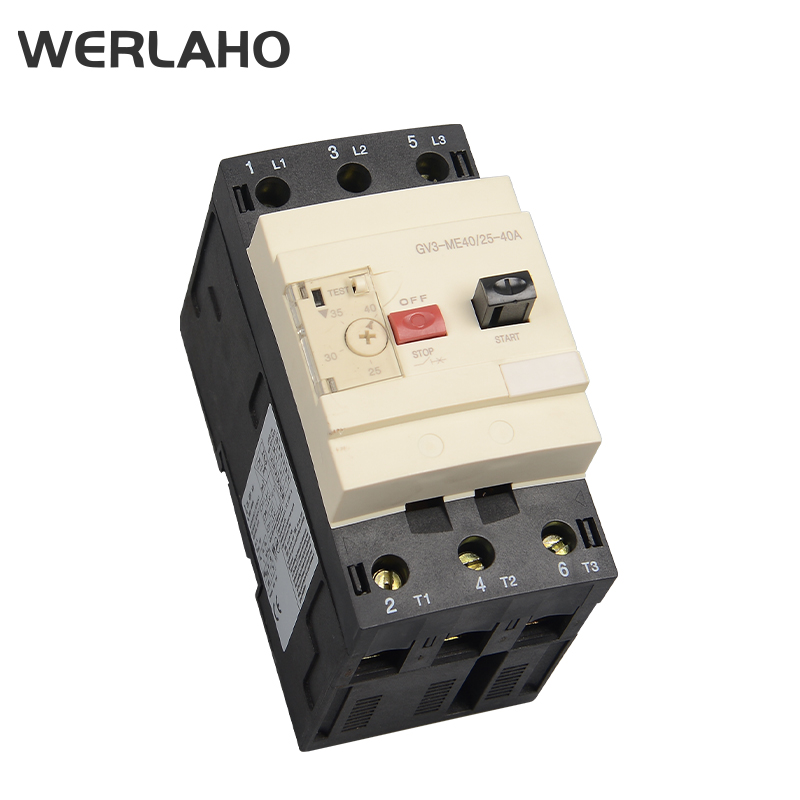

The technical data of GV3 please see below Table 6 and Table 7:
Remarks:*means fuse is not required.
Accessories

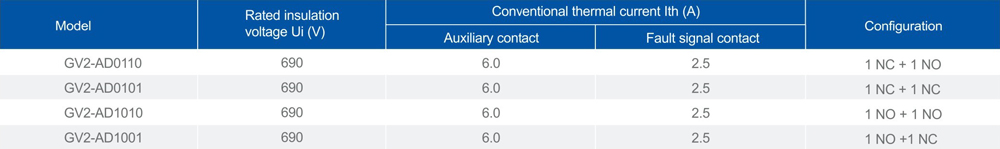

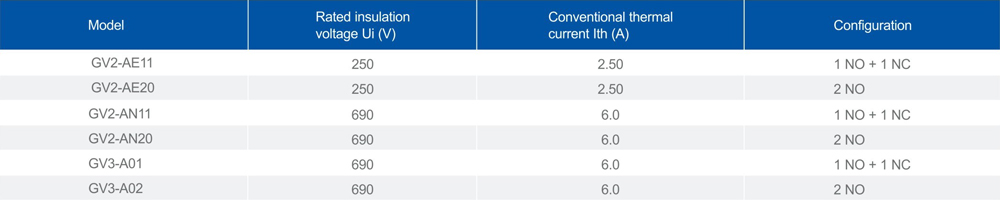

Auxiliary contact

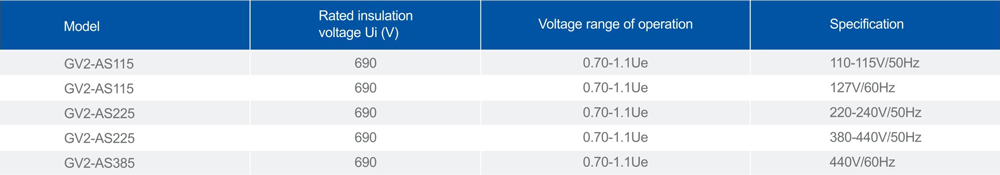

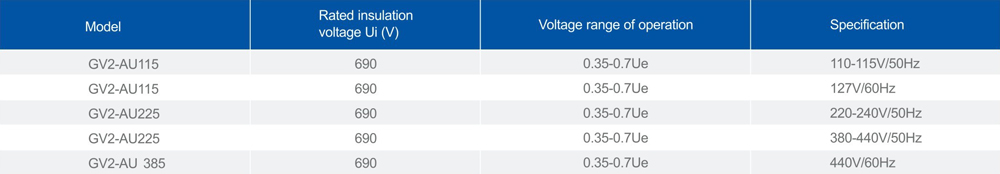

Under-voltage release
Shunt release
Fault signal contact and instantaneous auxiliary contact

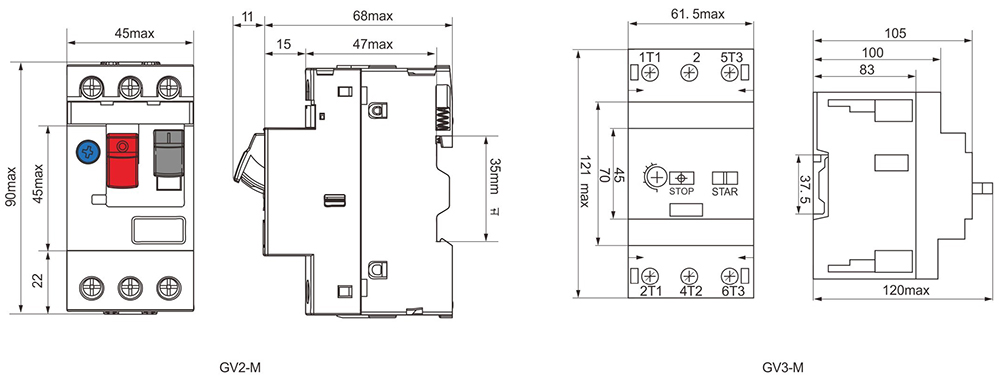

Dimensions
