Application
WLE1-D magnetic starter is applied to circuit of AC 50/60Hz, voltage up to 660V, current up to 95A, used for directly starting or stopping the motor. The starter(assembled with thermal overload relay)could protect motor against overload or phase loss.
Structure characteristic

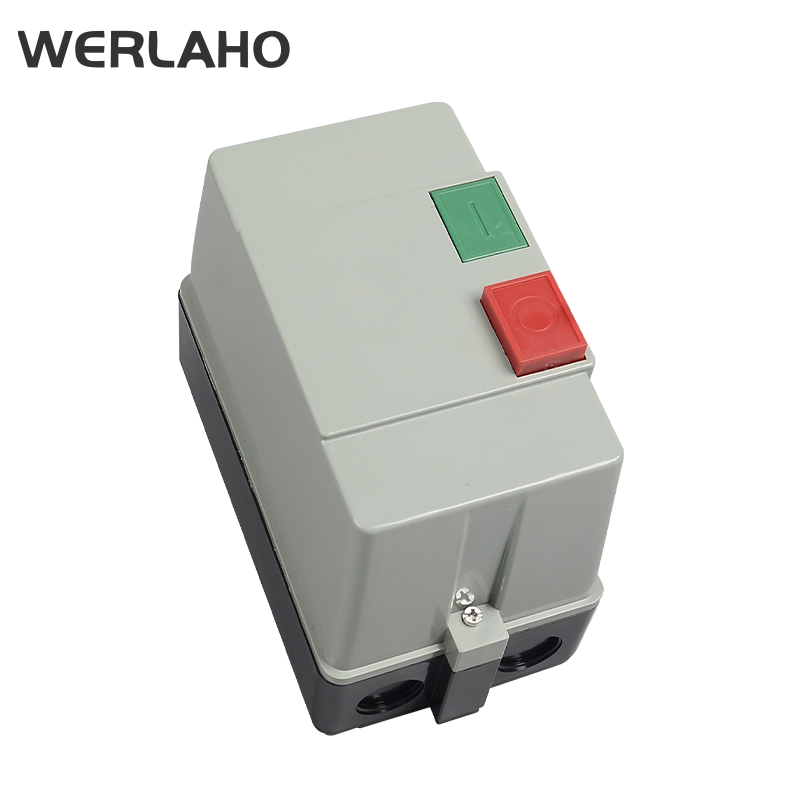

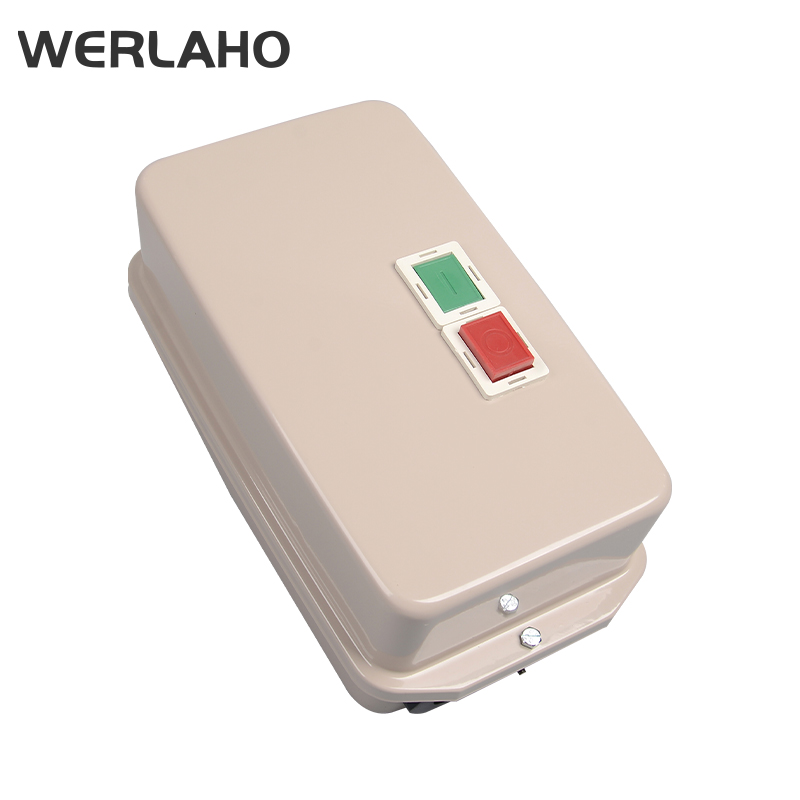

1. The starter is protected by enclosure(plastic enclosure for WLE1-D09~WLE1-D32; metal enclosure for WLE1-D40~WLE1-D95). The best protective grade of enclosure could be IP65.

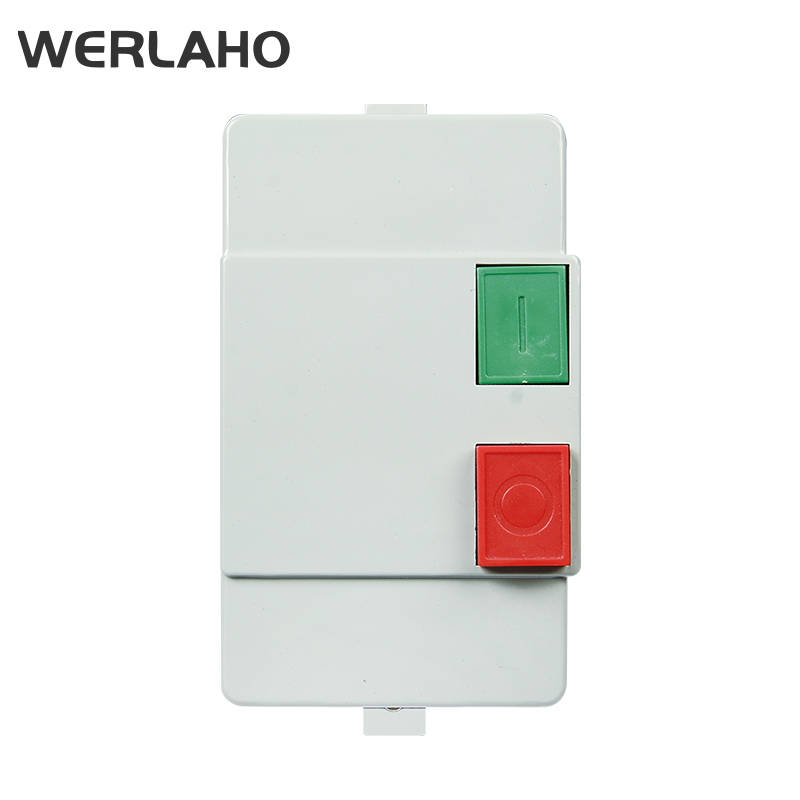

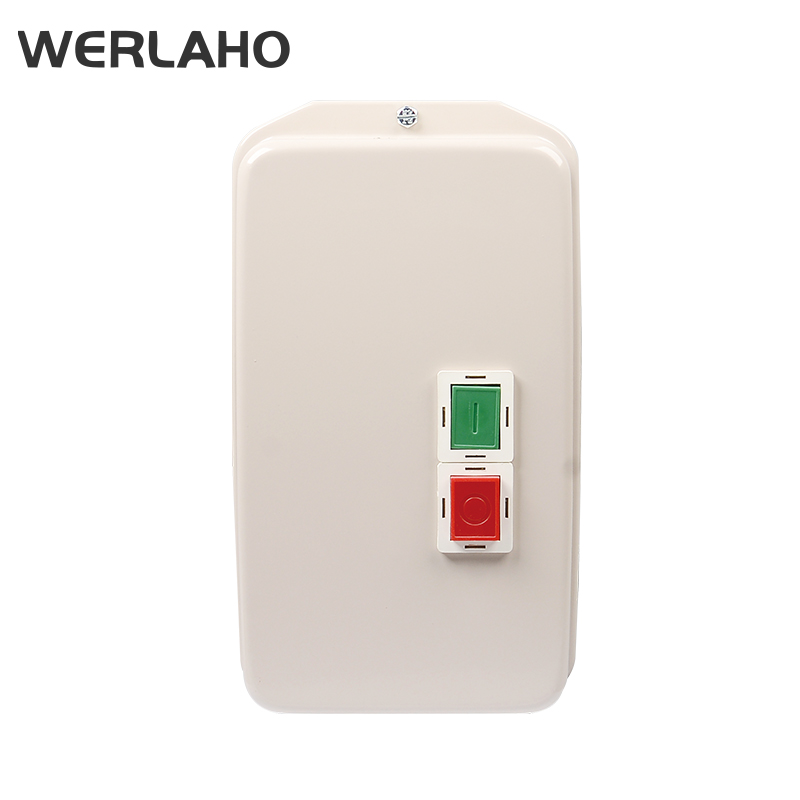

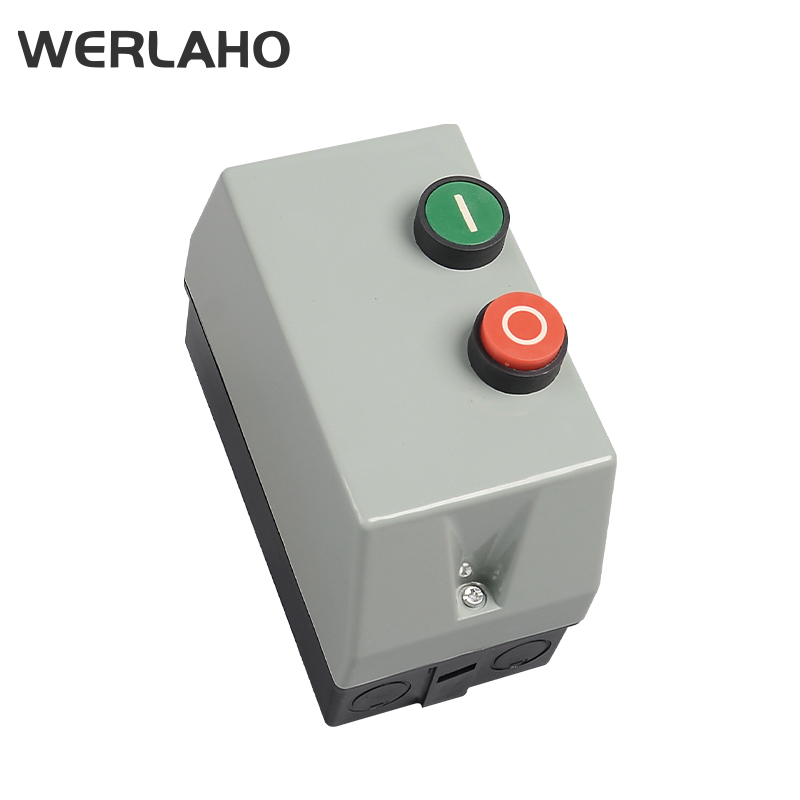

2. Operating mechanism is the manual pushbutton: START(green) and STOP(red). WLE1-D is non-reversing starter, equipped with thermal overload relay.
Main technical parameter

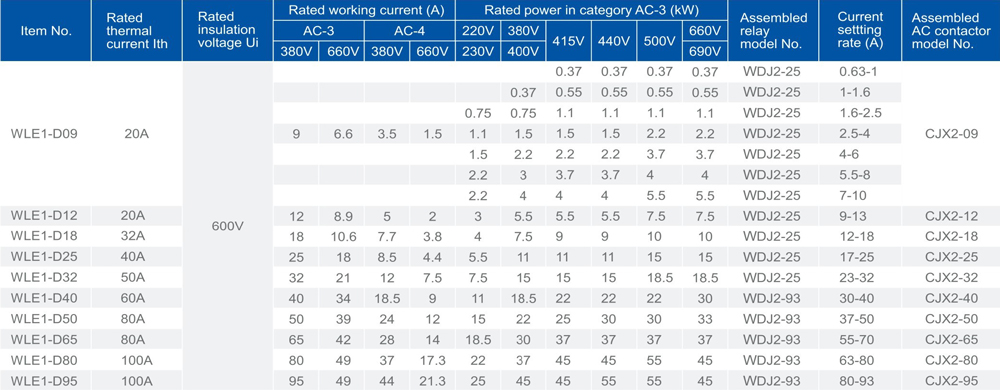

1. Main technical parameter and component parts please see Table 1.
2. Rated control circuit voltage (Us) of the starter is: AC50/60Hz,24V,42V,110V,220/230V,240V,380V/400V,415V,440V,480V, and 600V.
3. Operation range: Pull-in voltage:(50/60Hz)80% Us-110% Us;(50/60Hz)85% Us-110% Us; Release voltage:(50/60Hz)20% Us-75% Us.
4. The actuation range of starter (assembled with thermal overload relay), has the action characteristics of thermal relay.
5. The operation frequency of starter(assembled with thermal overload relay) is 30 times/hour.

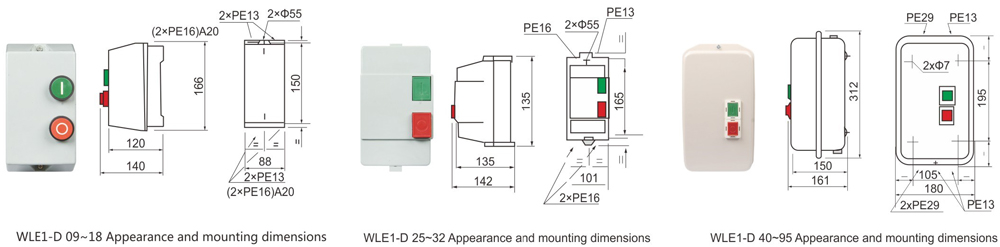

Dimensions
