APPLICATION

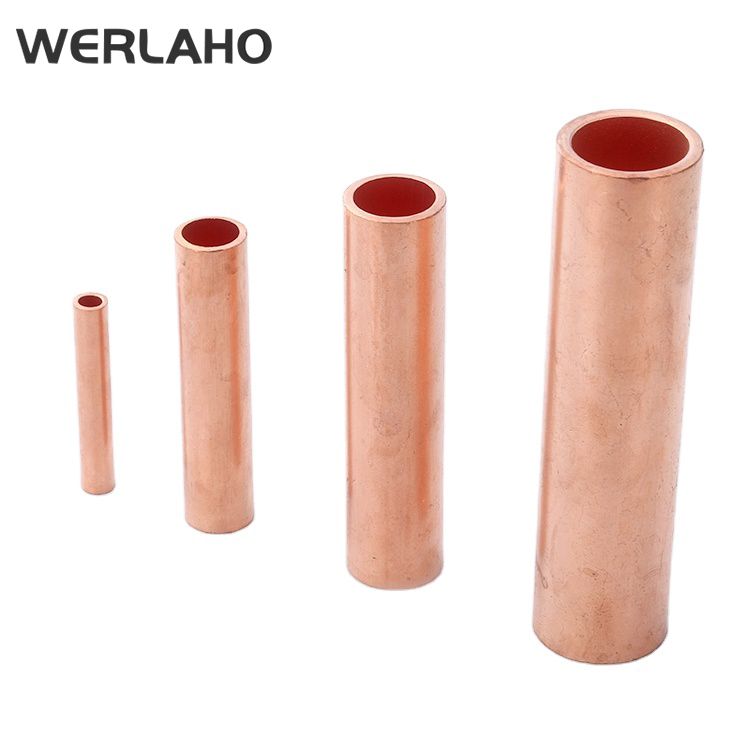

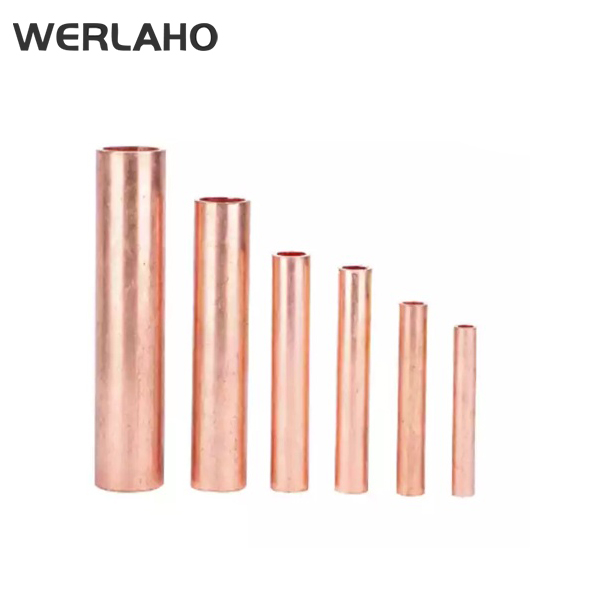

The series of connecting clamps suit the transition connection of apparatus in the door switching equipment with various kinds of wires and cables. Here are quite a few sorts of connecting clamps, some of which are JT series of copper connecting clamps.JL series of aluminum ones are made in the technology of friction welding.
DIMENSION LIST OF JOINTING CLAMPS
Type | Conductor | Dimensions(mm) | ||||
Φ | L | L1 | B | A | ||
JTL-100 | 16-25 | 10.5 | 76 | 40 | 40 | 3.5 |
JTL-200 | 25-30 | 12.5 | 85 | 52 | 52 | 4 |
JTL-300 | 35-50 | 12.5 | 95 | 58 | 58 | 4.5 |
JTL-400 | 50-70 | 12.5 | 104 | 61 | 61 | 4.5 |
JTL-500 | 70-95 | 14.5 | 109 | 68 | 68 | 5 |
JTL-600 | 95-120 | 14.5 | 114 | 68 | 68 | 5.5 |
JTL-800 | 120-150 | 14.5 | 125 | 75 | 75 | 5.5 |
JTL-1000 | 150-185 | 14.5 | 136 | 75 | 75 | 6 |
