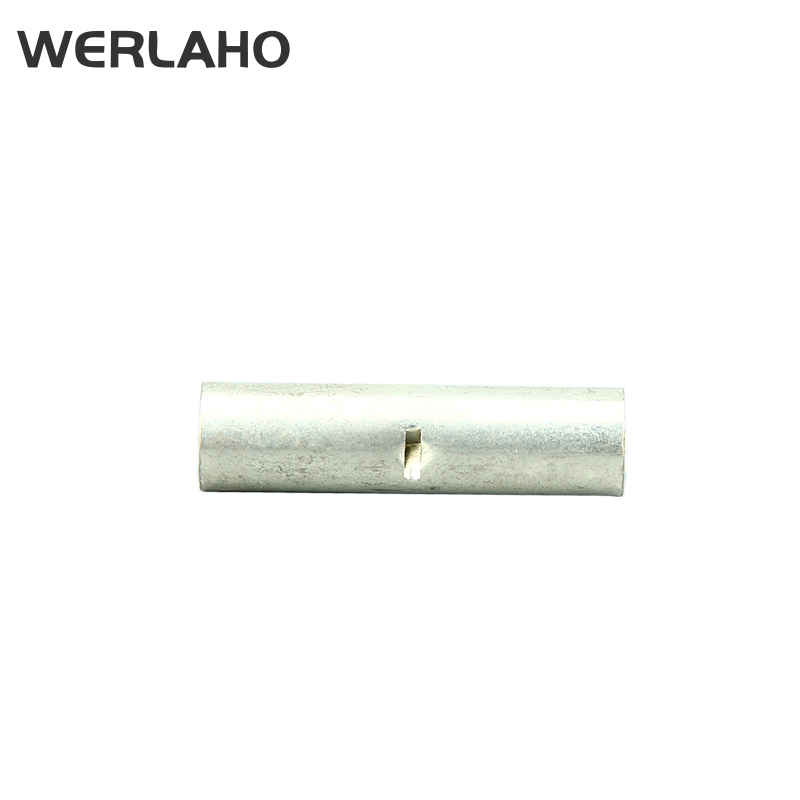

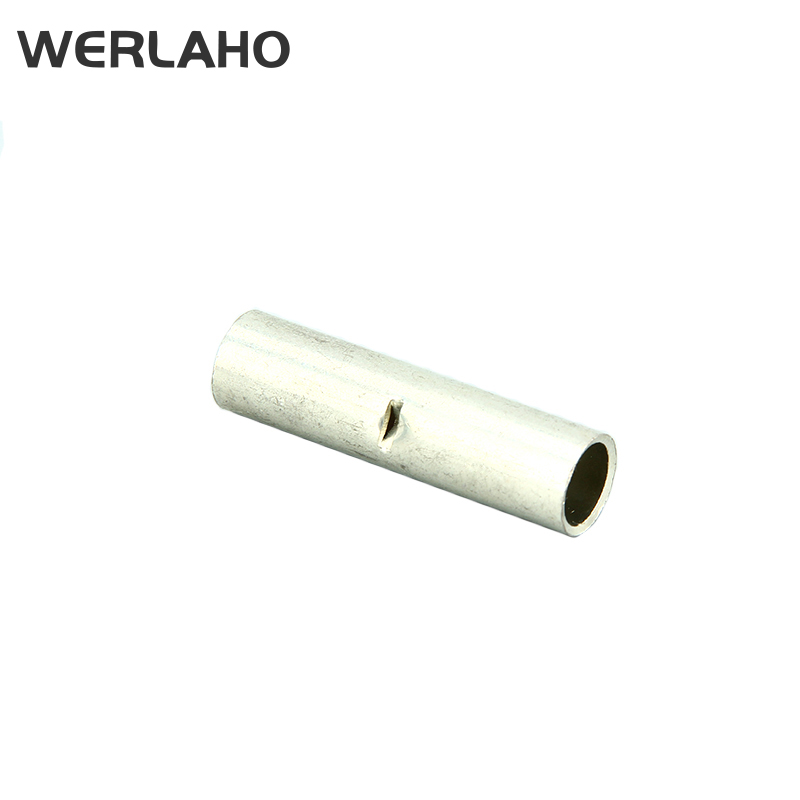

These products are applicable for the connection of the circular wire, hemicyde wire with power supply cable in distrbution equipment.They are made of higher 99.9 percent pure T2 copper tube. And coated tin.
| TYPE | D | d | L |
| GTY-1-1.5 | 3.7 | 1.8 | 20 |
| GTY-1-2.5 | 4 | 2.5 | 20 |
| GTY-1-4 | 4.8 | 3.1 | 20 |
| GTY-1-6 | 5.5 | 3.8 | 25 |
| GTY-1-10 | 6.8 | 4.8 | 30 |
| GTY-1-16 | 7.5 | 5.5 | 35 |
| GTY-1-25 | 9 | 7 | 40 |
| GTY-1-35 | 10.5 | 8.1 | 45 |
| GTY-1-50 | 12.5 | 9.8 | 50 |
| GTY-1-70 | 14.5 | 11.5 | 55 |
| GTY-1-95 | 17.5 | 13.5 | 60 |
| GTY-1-120 | 19.5 | 15.5 | 65 |
| GTY-1-150 | 21 | 16.5 | 70 |
| GTY-1-185 | 23.5 | 18.5 | 75 |
| GTY-1-240 | 26.5 | 21 | 80 |
| GTY-1-300 | 3 | 24 | 85 |
| GTY-1-400 | 34 | 27 | 90 |
| GTY-1-500 | 38 | 30 | 100 |
| GTY-1-630 | 45 | 35 | 110 |
| GTY-1-800 | 50 | 39 | 150 |
| GTY-1-1000 | 36 | 44 | 170 |
| TYPE | D | d | L |
| GTY-2-1.5 | 3.7 | 1.8 | 20 |
| GTY-2-2.5 | 4 | 2.5 | 20 |
| GTY-2-4 | 4.8 | 3.1 | 20 |
| GTY-2-6 | 5.5 | 3.8 | 25 |
| GTY-2-10 | 6.8 | 4.8 | 30 |
| GTY-2-16 | 7.5 | 5.5 | 35 |
| GTY-2-25 | 9 | 7 | 40 |
| GTY-2-35 | 10.5 | 8.1 | 45 |
| GTY-2-50 | 12.5 | 9.8 | 50 |
| GTY-2-70 | 14.5 | 11.5 | 55 |
| GTY-2-95 | 17.5 | 13.5 | 60 |
| GTY-2-120 | 19.5 | 15.5 | 65 |
| GTY-2-150 | 21 | 16.5 | 70 |
| GTY-2-185 | 23.5 | 18.5 | 75 |
| GTY-2-240 | 26.5 | 21 | 80 |
| GTY-2-300 | 3 | 24 | 85 |
| GTY-2-400 | 34 | 27 | 90 |
| GTY-2-500 | 38 | 30 | 100 |
| GTY-2-630 | 45 | 35 | 110 |
| GTY-2-800 | 50 | 39 | 150 |
| GTY-2-1000 | 36 | 44 | 170 |
