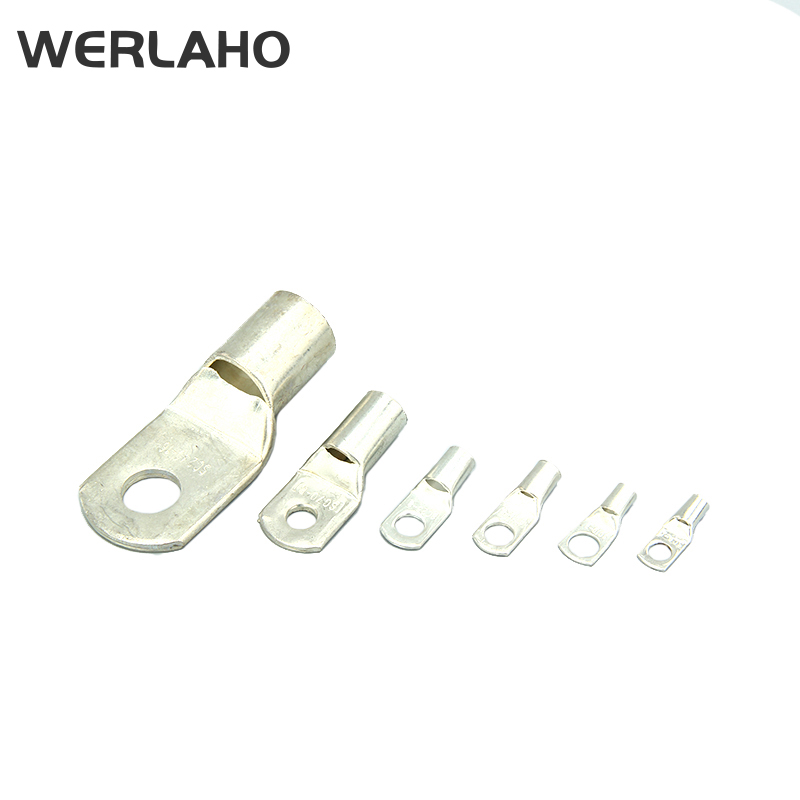

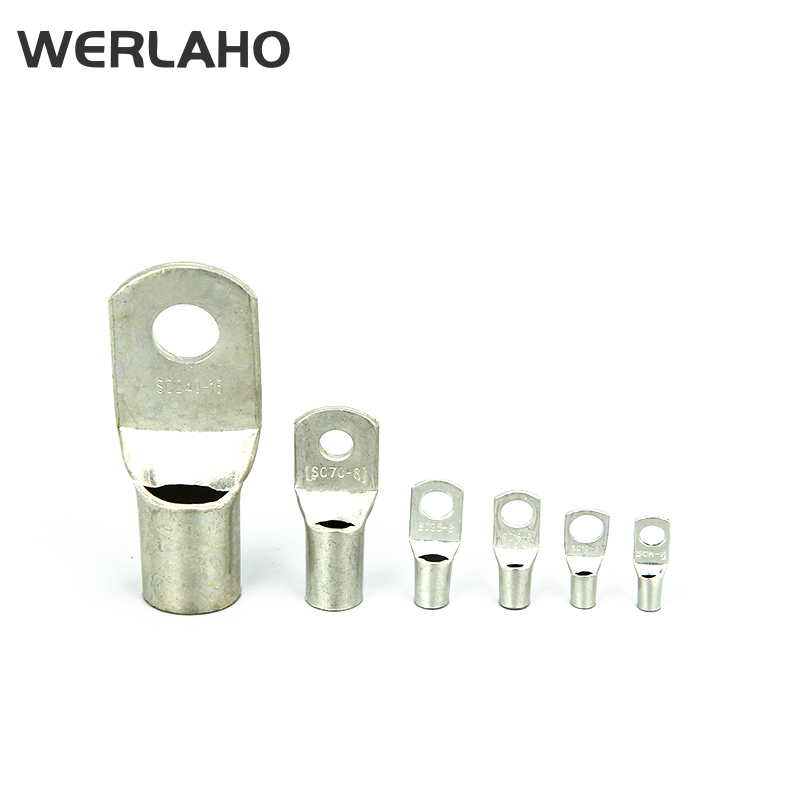

There products are suitable for the connection of copper conductors(section 1.5-1000mm2) in power cable with electronic equipment they are made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature-5 5 °C -15 0°C
TYPE | Φ | D | d | L |
SC(JGK)-1.5 | Φ4.2,Φ5.2 | 3.5 | 2.3 | 18 |
SC(JGK)-2.5 | Φ4.2,Φ5.2Φ6.2 | 4 | 2.8 | 19 |
SC(JGK)-4 | Φ5.2,Φ6.2 | 4.8 | 3.1 | 20 |
SC(JGK)-6 | Φ5.2,Φ6.2,Φ8.2 | 5.5 | 3.8 | 23 |
SC(JGK)-10 | Φ6.2,Φ8.2 | 6.8 | 4.8 | 24.5 |
SC(JGK)-16 | Φ6.2,Φ8.2,Φ10.5 | 7.5 | 5.5 | 29.5 |
SC(JGK)-25 | Φ6.2,Φ8.2,Φ10.5 | 9 | 7 | 32.5 |
SC(JGK)-35 | Φ6.2,Φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.3 | 37.5 |
SC(JGK)-50 | Φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 44.5 |
SC(JGK)-70 | Φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 48 |
SC(JGK)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 54 |
SC(JGK)-120 | Φ12.5,Φ16.5 | 19.5 | 15.5 | 61 |
SC(JGK)-150 | Φ12.5,Φ16.5 | 21 | 16.5 | 68 |
SC(JGK)-180 | Φ16.5 | 23.5 | 18.8 | 76 |
SC(JGK)-240 | Φ16.5 | 26 | 21 | 88.5 |
SC(JGK)-300 | Φ16.5,Φ20.5 | 30 | 24 | 99 |
SC(JGK)-400 | Φ16.5,Φ20.5 | 34 | 27 | 110.5 |
SC(JGK)-500 | Φ16.5,Φ20.5 | 38 | 30 | 121 |
SC(JGK)-630 | Φ20.5 | 45 | 35 | 135.5 |
SC(JGK)-800 | Φ22.5 | 50 | 39 | 170 |
SC(JGK)-1000 | Φ22.5 | 56 | 44 | 200 |
