BIMETAL LUG B TYPE

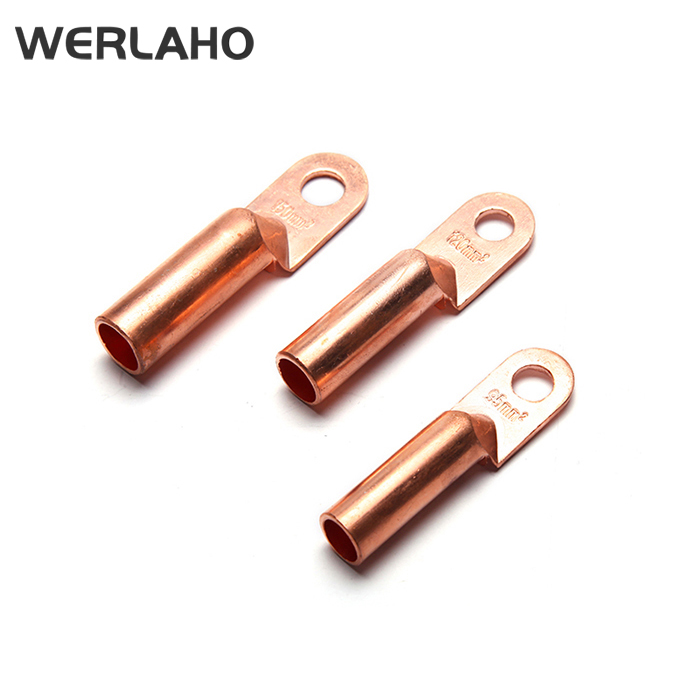

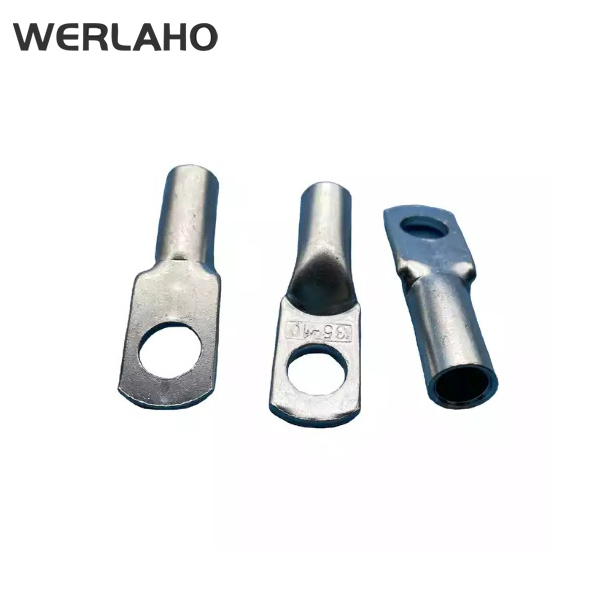

Connecting terminals are suitable for the conjuncton of wires cable in the distribution equipment and the electrical equipment DL series of aluminum connecting terminals are pressed with aluminium bar(L3),DT series of copper connecting terminals with copper bar(T2).

TYPE	Φ	D	d	L	LI	B
DT-10	8.5	9	5.3	62	28	16
DT-16	8.5	10	6.5	68	30	16
DT-25	8.5	11	7	70	33	18
DT-35	10.5	12	8.5	80	36	20.5
DT-50	10.5	14	9.8	86	40	23
DT-70	12.5	16	11.5	95	43	26
DT-95	12.5	18	13.5	104	46	28
DT-120	14.5	20	15	112	49	30
DT-150	14.5	22	17	120	51	34
DT-185	16.5	25	19	125	55	37
DT-240	16.5	27	21	136	60	40
DT-300	18	31	23.5	158	68	50
DT-400	21	34	26.5	176	78	50
DT-500	21	38	29.2	186	82	60
DT-630	21	45	32	215	86	60
DT-800	21	50	38	260	90	80

TYPE	Φ	D	d	L	LI
DL-10	8.5	10	6	66	31
DL-16	8.5	11	6	70	32
DL-25	8.5	12	7	75	36
DL-35	12.5	14	8.5	83.5	40
DL-50	12.5	16	9.8	94	42
DL-70	12.5	18	11.5	102	46
DL-95	12.5	20	13.5	112	48
DL-120	14.5	22	15	118	52
DL-150	14.5	25	16.5	128	54
DL-185	16.5	27	18.5	133	58
DL-240	16.5	31	21	140	61
DL-300	18	34	23.5	165	67
DL-400	21	38	26.5	178	76
DL-500	21	45	29	200	85
DL-630	21	50	35	220	90
DL-800	21	65	38	250	100

TYPE	Φ	D	d	L
JG-10	6.2	8	5	37.5
JG-16	8.5	9	6	40.5
JG-25	8.5	10	7	45.5
JG-35	8.5	11	8	51.5
JG-50	8.5	13	10	54
JG-70	10.5	16	12	60
JG-95	10.5	18	14	65
JG-120	12.5	19	15	72.5
JG-150	12,5	22	17	77
JG-185	14.5	24	19	86
JG-240	16.5	26	21	93.5
JG-300	16.5	31	24	101
JG-400	18.5	34	26	113.5
JG-500	20.5	38	30	123.5
JG-630	22.5	45	35	135
JG-800	22.5	50	40	170
