Lead section:0.5~1.5mm2(22~16) max current=10A
| ITEM NO. | Thickness (mm) | Dimension | Color | |||||
| bΦ (mm) | F (mm) | DΦ (mm) | dΦ (mm) | H (mm) | L (mm) | |||
| MPD1.25-156 | 0.4 | 4 | 11 | 2.7 | 1.7 | 10 | 21 | Red |
Lead section:1.5~2.5mm2(16~14) max current=15A
| ITEM NO. | AWG | Dimension | Color | |||||
| BΦ (mm) | F(mm) | DΦ(mm) | dΦ(mm) | H(mm) | L(mm) | |||
| MPD2-156 | 0.4 | 4 | 16 | 2.7 | 1.7 | 10 | 21 | Bule |
| MPD2-195 | 0.4 | 5 | 16 | 2.7 | 1.7 | 10 | 21 | |
Lead section:4~6mm2(12~10) max current=24A
| ITME NO. | Thickness (mm) | Dimension | Color | |||||
| Bφ (mm) | F (mm) | DΦ (mm) | dΦ (mm) | H (mm) | L (mm) | |||
| MPD5.5~195 | 0.4 | 4 | 11 | 4.5 | 3.4 | 14 | 25 | Yellow |

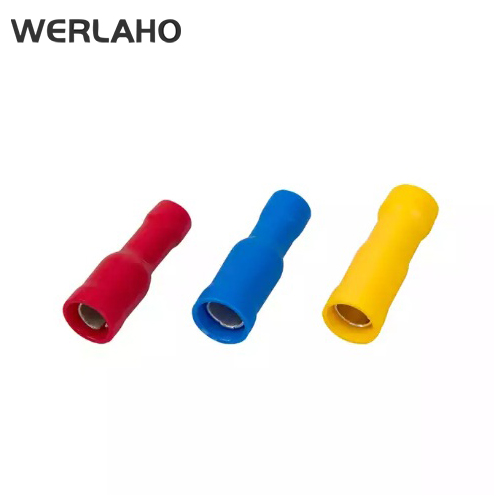

Lead section:0.5~1.5mm2(22~16) max current=10A
| ITEM NO. | Thickness (mm) | Dimension | Color | |||||
| bΦ (mm) | F (mm) | DΦ (mm) | dΦ (mm) | H (mm) | L (mm) | |||
| FRD1.25-156 | 0.4 | 5.4 | 16 | 2.7 | 1.7 | 13 | 24.5 | Red |
Lead section:1.5~2.5mm2(16~14) max current=15A
| ITEM NO. | Thickness (mm) | Dimension | Color | |||||
| BΦ (mm) | F (mm) | DΦ (mm) | dΦ (mm) | H (mm) | L (mm） | |||
| FRD1.25-156 | 0.4 | 4 | 6.3 | 3.3 | 2.3 | 14 | 24.5 | Blue |
| FRD1.25-195 | 0.4 | 5 | 7 | 3.3 | 2.3 | 14 | 24.5 | |
Lead section:4~6mm2(112~10) max current=24A
| ITEM NO. | Thickness (mm) | Dimension | Color | |||||
| BΦ (mm) | F (mm) | DΦ (mm) | dΦ (mm) | H (mm) | L (mm） | |||
| FRD5.5-195 | 0.4 | 5 | 7 | 4.5 | 2.4 | 14 | 29.5 | Yellow |
