Technical Date
The products accord with the standards of GB20840.3-2013,
IEC61869-3:2011 and some special demands
Rated frequency 50Hz/ 60Hz
Ambient temperature -25℃ ～ +40℃
Note:
1. Rated output and its relative accuracy class only one alternative.
2. If user’s data go beyond the above-mentioned scopes, they may be subject to an agreement between manufacturer and purchaser.
Overall dimensions

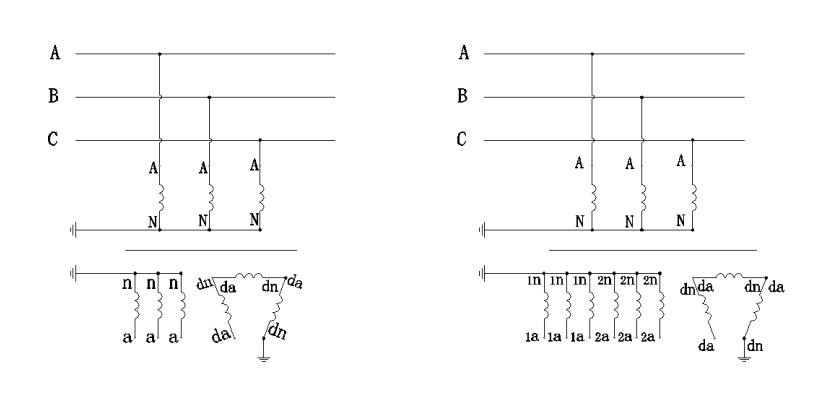

JDZX10-10B/180 Wiring diagram
