TECHNICAL DATA
The products accord with the standards of GB20840.3-2013, IEC61869-3:2011 and some special demands
Rated frequency 50Hz/ 60Hz
Ambient temperature -40℃ ～ +40℃
Type | Rated Voltage（KV） | Accuracy class and Rated output（VA） | Max. output（VA） | Rated insulation（KV） |
JDJ2-35 | 33/0.1 | 0.2-50 | 800 | 40.5 / 80 / 185 |
35/0.1 | ||||
JDJF2-35L | 35/0.1/0.1 | 0.2/50-20/30 | 600 |
Note：
1. Rated output and its relative accuracy class only one alternative.
2. If user's data go beyond the above-mentioned scopes, they may be subject to an agreement between manufacturer and purchaser.

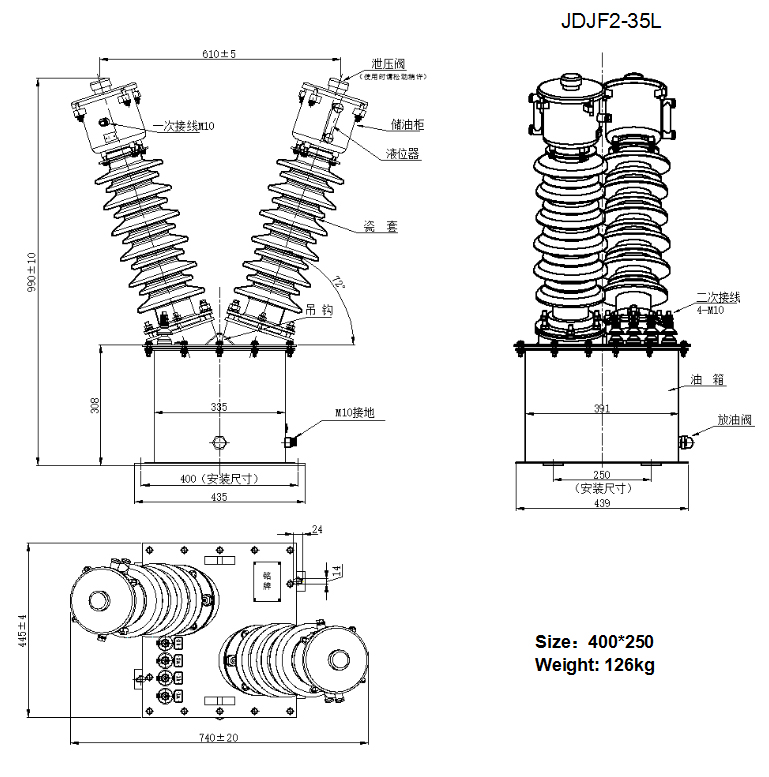

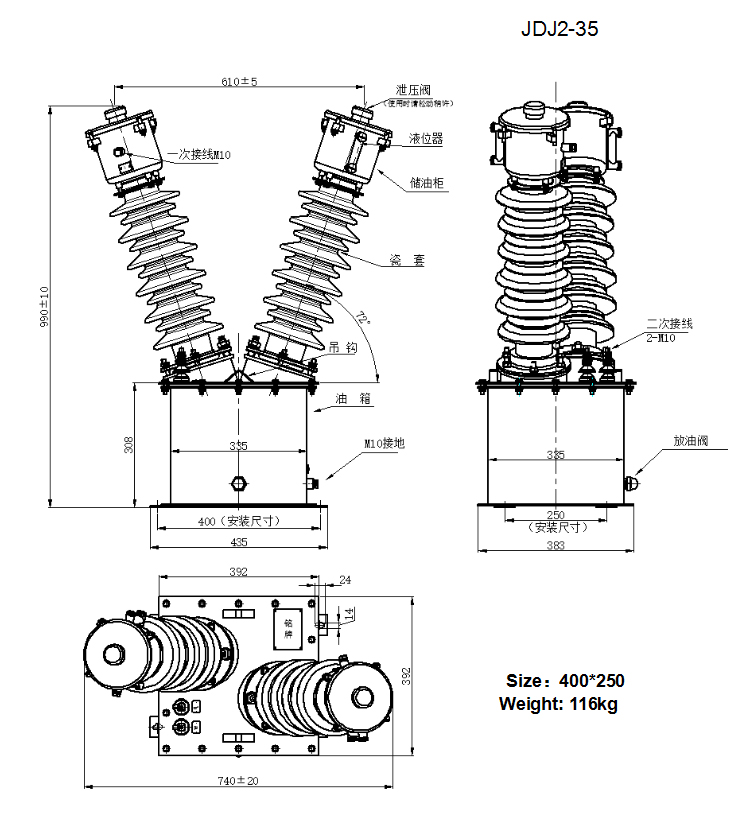

Overall dimensions

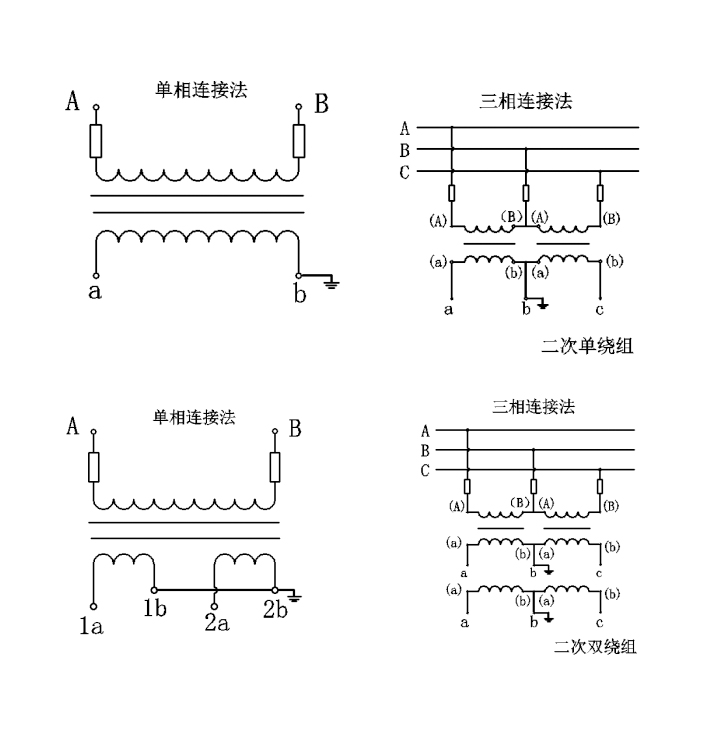

Wiring diagram
