TECHNICAL DATA
The products accord with the standards ofGB17201-2006and some special demands.
Rated frequency 50Hz/ 60Hz
Ambient temperature -15℃ ～ +55℃
Altitude not more than 4500M
Voltage transformer
Type | Rated voltage ratio(A) | Accuracy class and rated secondary output(VA) | Limit output(VA) | Rated insulation level(kV) |
JLSZV(F)-6W | 6000/100 | 0.2---2×20 | 2×400 | 7.2/32/60 |
JLSZV(F)-10W | 10000/100 | 12/42/75 |
Current transformer
Rated primary current(A) | Single transformation ratio | Accuracy class and rated secondary output(VA) | 1s thermal current(kA) | Rated dynamic current(kA) | ||
(0.2)S | 0.5S | 0.5 | ||||
7.5-10-15 | 7.5 | 10 | 10 | 15 | 1 | 2.5 |
10-15-20 | 10 | 1.5 | 3.75 | |||
15-20-30 | 15 | 2.4 | 6 | |||
20-30-40 | 20、25 | 3 | 7.5 | |||
30-40-50 | 30 | 4.5 | 11 | |||
40-50-75 | 40 | 8 | 20 | |||
50-75-100 | 50 | 9 | 22.5 | |||
75-100-150 | 75 | 12 | 30 | |||
100-150-200 | 100 | 16 | 40 | |||
150-200-300 | 150 | 24 | 60 | |||
200-300-400 | 200、250 | 32 | 80 | |||
300-400-500 | 300 | 45 | ||||
400-500-600 | 400 | 60 | 100 | |||
Note：
1. Rated output and its relative accuracy class only one alternative.
2.If user's data go beyond the above-mentioned scopes, they may be subject to an agreement between manufacturer and purchaser.

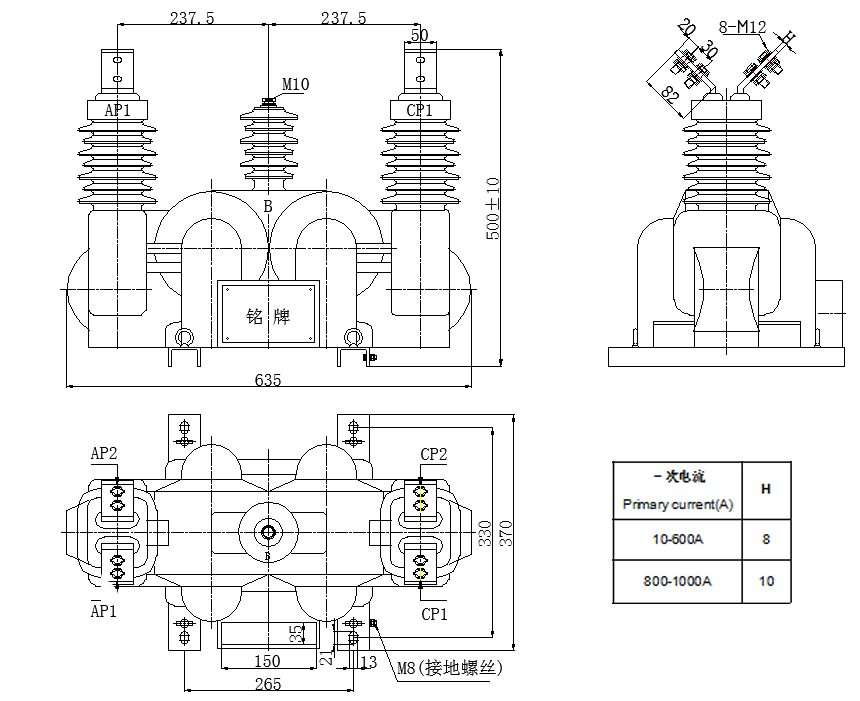

Overall dimensions

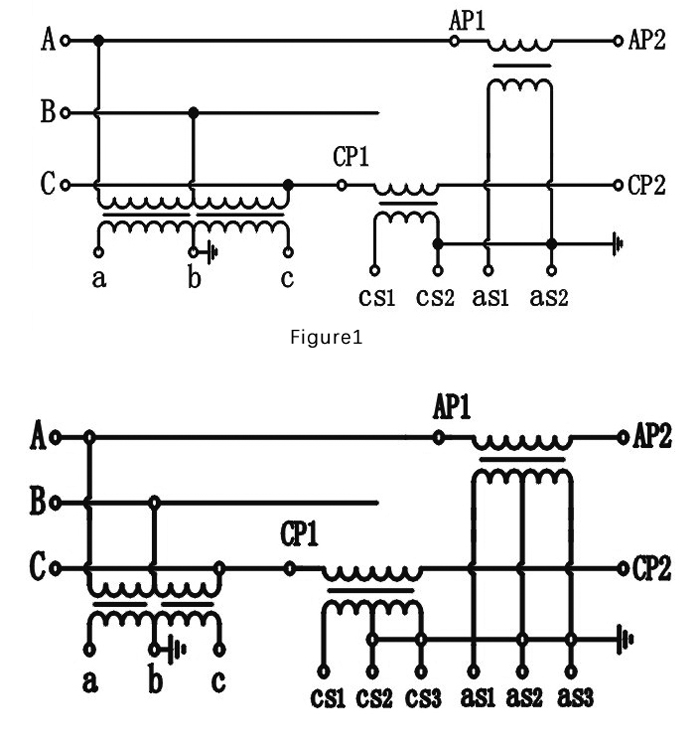

Wiring diagram
