TECHNICAL DATA
The products accord with the standards of GB20840.3-2013,IEC61869.3-2011
Rated frequency 50Hz/ 60Hz
Ambient temperature -25℃ ～ +40℃
Type | Rated voltage ratio(V) | Accuracy class and Rated output | Limit output(VA) | Rated insulated level(kV) |
JSZW3-6G |
| 0.2/6P(3P)---3*15/100 | 600 | 7.2/30/60 |
JSZW3-10G |
| 12/42/75 |
Note：
1. Rated output and its relative accuracy class only one alternative.
2. If user's data go beyond the above-mentioned scopes, they may be subject to an agreement between manufacturer and purchaser.
Overall dimensions

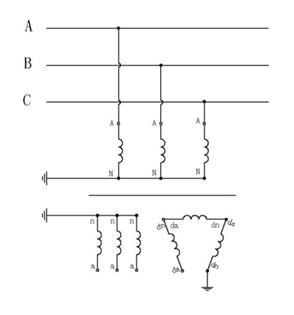

Wiring diagram
