TECHNICAL DATA
The products accord with the standards of GB1207-2006,IEC60044-2:2003
Three-phase
Rated secondary current 5A or 1A
Ambient temperature -5℃ ～ +50℃
Type | Rated frequency（HZ） | Voltage ratio（V） | Rated Insulation（KV） | Accuracy Class and Rated Output （VA） | Max.output（VA） |
JDZW-35QIV | 50 | 35000/100 | 40.5/95/200 | 0.2-45 | 600 |
JDZW-35QIV-S | 35000/100/100 | 40.5/95/200 | 0.2/0.5-30/30 |
1.Rated output and its relative accuracy class only one alternative.
2.If user's data go beyond the above-mentioned scopes, they may be subject to an agreement between manufacturer and purchaser.

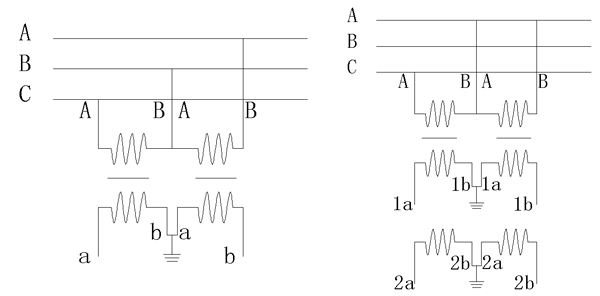

Wiring diagram
Overall dimensions
