GENERAL
WQC series miniature circuit breaker applies to industrial, commerical, lighting and electric machine distribution system with AC120/415V,50/60Hz, rated working current up to 100Ato protect against overload and short circuit.
SPECIFICATIONS
Standard | Unit | IEC/EN60947-2 |
Number of Poles | P | 1P,2P,3P,4P |
Rated current | A | 15,20,30,40,50,60,75,100,125 |
Rated Voltage | V | 120(1P),120/240(2P),240/415(3P/4P) |
Breaking Capacity | A | 5KA(120V);10KA(240/415V) |
Rated frequency | Hz | 50/60Hz |
Electrical Life | Times | 6000 |
Mechanical Life | Times | 14000 |
Degree of protection | IP20 |

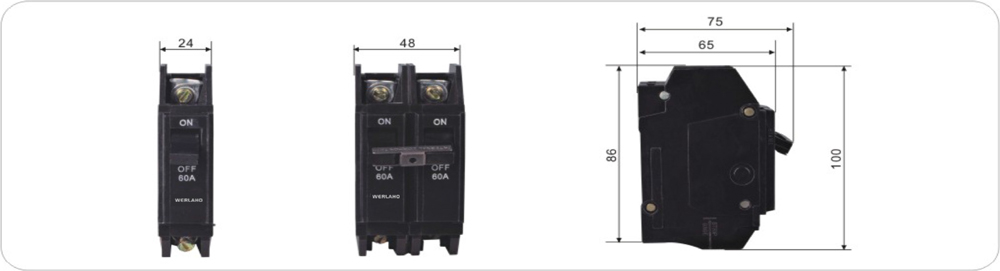

WIRING DIAGRAM/OVERALL AND MOUNTING DIMENSIONS(MM)
