SPECIFICATIONS
Standard | IEC/EN60947-2 |
Pole | 1P,2P,3P,4P |
Rated voltage Ue(V) | 230/400-240/415 |
Insulation voltage Ui(V) | 500 |
Rated frequency(Hz) | 50/60 |
Rated current In(A) | 63,80,100,125 |
Type of instantaneous release | 8-12In |
Protective grade | IP20 |
Breaking capacity(A) | 10000 |
Rated impulse withstand voltage(1.2/50) Uimp(V) | 4000 |
Mechanical life | 8000 times |
Electrical life | 1500 times |
Ambient temperature(℃) | -5-+40(with daily average ≤35) |
Terminal connection type | Cable/Pin type busbar |

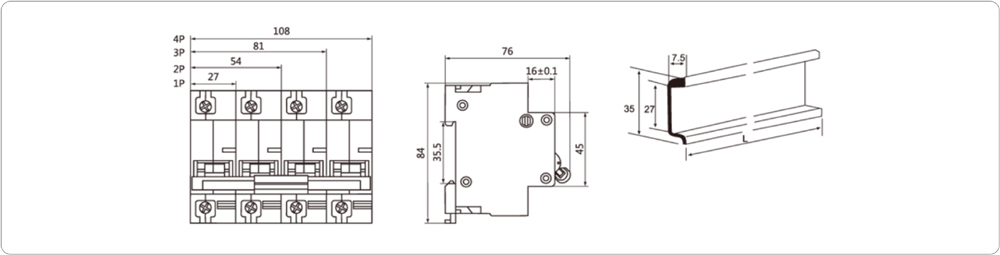

OVERALL AND MOUNTING DIMENSIONS(MM)
