TECHNICAL DATA
The products accord with the standards of GB1208-2006, IEC60044-1:2003
Rated insulation 12/42/75kV
Rated frequency 50Hz
Rated secondary current 5A or 1A
Ambient temperature -5℃~+55℃
Rated primary current | Accuracy Classes combination | Rated output | Rated short-time thermal current | Rated dynamic current | |||
0.2S | 0.2 | 5P | 10P | ||||
5~400 | 0.2/10P | 10 | 10 | 15 | 15 | 60 I1n | 150 I1n |
600 | 50 I1n | 120 I1n | |||||
800 | 50 I1n | 100 I1n | |||||
1000 | 45 I1n | 90 I1n | |||||
Note：If user’s data go beyond the above mentioned scopes，they may be subject to an agreement between manufacturer and purchaser.

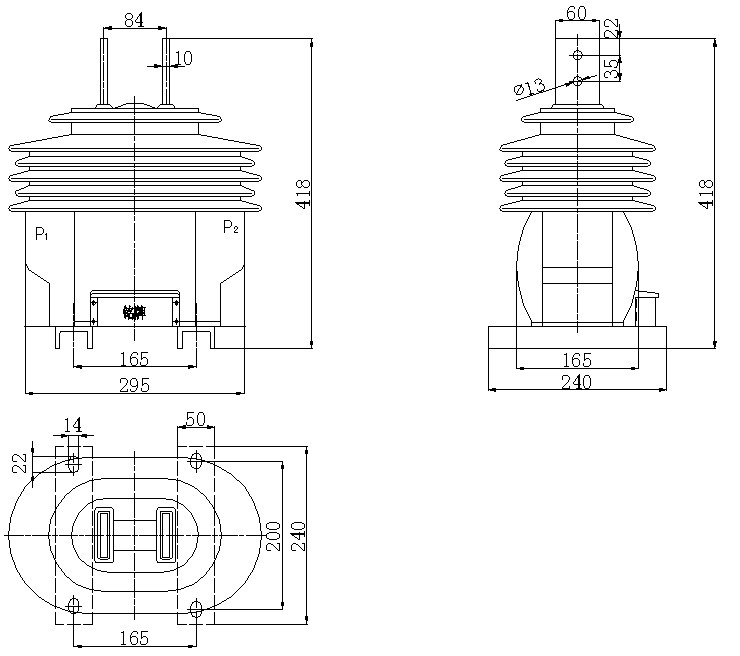

Overall dimensions
