GENERAL
a. Rated residual operating current: IAn=30 mA, additional protection in the case of direct contact
b. Tripping class: AC class-Tripping is ensured for sinusoidal. alternating currents, whether they be quickly applied or slowly increase.
c. Tripping curve:
B curve(3-5ln) protection and control of the circuits against overloads and short-circuits; protection for people and big length cables in TN andIT systems.
C curve(5-10In) protection and control of the circuits against overloads and short circuits; protection for resistive and inductive loads with low inrush current.
SPECIFICATIONS
Standard | unit | IEC/EN 61009-1 | |
Electrical | Mode | electronic type | |
Type(wave form of the earth leakage sensed) | AC | ||
Thermo-magnetic release characteristic | B,C | ||
Rated current In | A | 2,4,6,10,16,20,25,32,40 | |
Poles | P | 1P+N | |
Rated voltage Ue | V | AC 240 | |
Rated sensitivity I△n | A | 0.01,0.03,0.1 | |
Rated residual making and breaking capacity l△m | A | 500 | |
Rated short-circuit capacity Icn | A | 4500 | |
Break time under l△n | s | ≤0.1 | |
Rated frequency | Hz | 50/60 | |
Rated impulse withstand voltage(1.2/50) Uimp | V | 4000 | |
Dielectric test voltage at ind. Freq for 1 min | kV | 2 | |
Insulation voltage Ui | 500 | ||
Pollution degree | 2 | ||
Mechanical | Electrical life | t | 4000 |
Mechanical life | t | 8000 | |
Contact position indicator | Yes | ||
Protection degree | IP20 | ||
Ambient temperature (with daily average≤35℃) | ℃ | -5~+40(Special application please refer to temperature compensation correction) | |
Installation | Storage temperature | ℃ | -25~+70 |
Terminal connection type | Cable/Pin-type busbar/U-type busbar | ||
Terminal size top/bottom for cable | mm² | 25 | |
AWG | 18-5 | ||
Terminal size top/bottom for busbar | mm² | 16 | |
AWG | 18-5 | ||
| Tightening torque | N*m | 2 | |
| In-lbs | 18 | ||
Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||
Connection | From top |

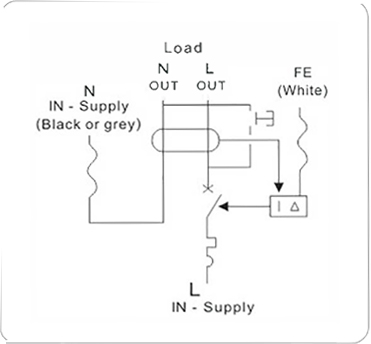

WIRING DIAGRAM

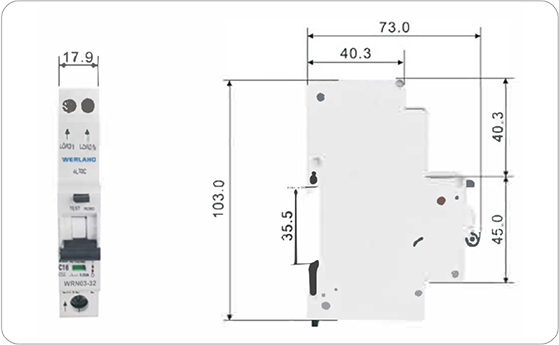

OVERALL AND MOUNTING DIMENSIONS(MM)
